ABR-L 180/620-840 T / 0650148
Product Description
Ceiling light from the ABR product family. Optical control via Louvre, beam pattern symmetric, extremely wide beam, light emission direct. Lamp L-TUBE installed, Exchange by end customer. The luminaire generates a rated luminous flux of 5630 lm in light colour 840, luminous flux adjustable: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20. Pendant mounting with corresponding fixing kits. Ceiling mounting using the enclosed slotted discs. Rail mounting on TRAS or VLTO trunking. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
ABR. 180, 280: all lamps are wired to L1. (180 with 1 device, 280 with 2 devices). ABR. 380: central lamp wired to L2, outer lamps to L1. (3 devices). ABR. 480: both central lamps wired to L2, outer lamps to L1. (4 devices). Other wiring arrangements are available on request.
Note “ball resistant“:RIDI luminaires with this sign are produced to the appropriate mechanical and photometric standards demanded for sports hall lighting. They comply with ball-resistant safety requirements according to DIN 18032, part 3.
Order Information
| GTIN | 4029299431704 |
General
| Product category | Ceiling light |
| Range of application | Sports and multipurpose halls |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1549 mm |
| Dimension B | 181 mm |
| Dimension H | 95 mm |
| Dimension A1 | 1250 mm |
| Dimension AB | 300 mm |
| Net weight | 7.830 kg |
Mounting
| Mounting type | Attachment | Pendant |
| Mounting position | Ceiling | Trunking |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | Steel |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 48.0 W |
| Protection class | I |
Lighting technology
| Light guide | Louvre |
| Light output | direct |
| Light distribution | symmetric |
| Radiation pattern | extremely wide beam |

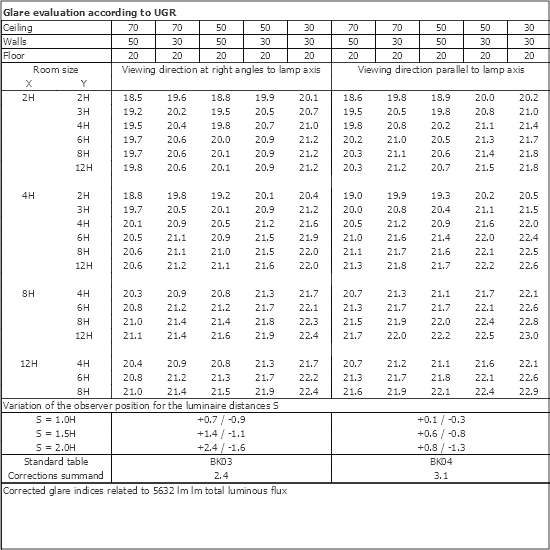

| UGR class | ≤ 22 |
| Rated luminous flux | 5630 lm |
| Luminaire efficiency | 117 lm/W |
Light source
| Lamp | L-TUBE |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
0207880 -
ZSP-SK-3M
|
Wire pendant loop clamp, D = 2 mm, L = 3m, 1 piece, maximum 45 kg |
|
|
0208347 -
VLSPSO-KH
|
Turnbuckle with eyelets + carabiner, adjustment 50 mm, maximum 20 kg, 1 piece |
|
|
0205888 -
VLKH
|
Carabiner hook, dimensions 50x25x5, max. 20kg, 1pc |
|
|
0205887 -
VLBP
|
Plate with loop for ceiling fixing. max. 20kg, 1 pc |
|
|
0200251 -
TRA 008 KETTE GALV. VERZ.
|
Galvanised chain, max. 20kg , weight 0.25 kg/m |
|
|
0200223 -
TRA 002 M5X20
|
Luminaire hanger M5 x 20 swing hooks, galvanized steel |
|
|
0200638 -
ZIDV 58/5/2.5 DURCHVERDR.
|
Through wiring T26-58W+T16-35/49/80W, 5x2.5mm², max. 16A |
|
|
|
0201202 -
ZIDV 58/3/1.5 DURCHVERDR.
|
Through wiring T26-58W+T16-35/49/80W, 3x1.5mm², max. 10A |
|
|
|
0200255 -
ZIDV 58/5/1.5 DURCHVERDR.
|
Through wiring T26-58W+T16-35/49/80W,5x1.5mm², max.10A |
|
|
| Item number - Bezeichnung | Length | Colour temperature | Characteristic | ||
| 0206661LD - L-TUBE-B 145-840M0450-0950 LD | 1450 | 4000 K | matt |
|
|
Ceiling light from the ABR product family. Optical control via Louvre, beam pattern symmetric, extremely wide beam, light emission direct. Lamp L-TUBE installed, Exchange by end customer. The luminaire generates a rated luminous flux of 5630 lm in light colour 840, luminous flux adjustable: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20. Pendant mounting with corresponding fixing kits. Ceiling mounting using the enclosed slotted discs. Rail mounting on TRAS or VLTO trunking. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
ABR. 180, 280: all lamps are wired to L1. (180 with 1 device, 280 with 2 devices). ABR. 380: central lamp wired to L2, outer lamps to L1. (3 devices). ABR. 480: both central lamps wired to L2, outer lamps to L1. (4 devices). Other wiring arrangements are available on request.
Note “ball resistant“:RIDI luminaires with this sign are produced to the appropriate mechanical and photometric standards demanded for sports hall lighting. They comply with ball-resistant safety requirements according to DIN 18032, part 3.
Order Information
| GTIN | 4029299431704 |
General
| Product category | Ceiling light |
| Range of application | Sports and multipurpose halls |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1549 mm |
| Dimension B | 181 mm |
| Dimension H | 95 mm |
| Dimension A1 | 1250 mm |
| Dimension AB | 300 mm |
| Net weight | 7.830 kg |
Mounting
| Mounting type | Attachment | Pendant |
| Mounting position | Ceiling | Trunking |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | Steel |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 48.0 W |
| Protection class | I |
Lighting technology
| Light guide | Louvre |
| Light output | direct |
| Light distribution | symmetric |
| Radiation pattern | extremely wide beam |
| UGR class | ≤ 22 |
| Rated luminous flux | 5630 lm |
| Luminaire efficiency | 117 lm/W |
Light source
| Lamp | L-TUBE |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Light distribution curve
Approvals:
Attributes:
0206661LD - L-TUBE-B 145-840M0450-0950 LD
Length: 1450
Colour temperature: 4000 K
Characteristic: matt
