R-TUBE 150-830M0500 LD / 0206614LD
Product Description
Design: LED lamp RIDI-TUBE, colour rendering Ra >= 80, standard colour tolerance < 3 Step MacAdam (initial). LED module configured as a linear circuit board. Mid-power LEDs for even illumination and maximum efficiency. Base profile in extruded aluminium for optimum thermal management. Linear circuit board interlocked with the base profile along the whole length. Cover in satinised PMMA for efficient light emission, base in durable white PC. Operation using an external LED driver (prefitted in luminaire), constant current, safety extra low voltage less than 60 Volts (SELV conformity).
Order Information
| Item number | 0206614LD |
| GTIN | 4029299554793 |
Dimensions
| Dimension L | 1500 mm |
| Dimension B | 23 mm |
| Dimension H | 23 mm |
| Net weight | 0.49 kg |
Technical data
| Colour temperature | 3000 K |
| Illuminant luminous flux | 4890 lm |
| Lamp wattage | 30 W |
| Luminaire efficiency | 163,0 lm/W |
| Colour rendering index Ra | ≥ 80 |
| Power consumption | 0.73 mA |
| Energy consumption | 34 kWh/1.000 h |
| Energy efficiency class | D |
Download Center
Approvals:
<P><B>Design:</B> LED lamp RIDI-TUBE, colour rendering Ra >= 80, standard colour tolerance < 3 Step MacAdam (initial). LED module configured as a linear circuit board. Mid-power LEDs for even illumination and maximum efficiency. Base profile in extruded aluminium for optimum thermal management. Linear circuit board interlocked with the base profile along the whole length. Cover in satinised PMMA for efficient light emission, base in durable white PC. Operation using an external LED driver (prefitted in luminaire), constant current, safety extra low voltage less than 60 Volts (SELV conformity).</P>
Order Information
| Item number | 0206614LD |
| GTIN | 4029299554793 |
Dimensions
| Dimension L | 1500 mm |
| Dimension B | 23 mm |
| Dimension H | 23 mm |
| Net weight | 0.49 kg |
Technical data
| Colour temperature | 3000 K |
| Illuminant luminous flux | 4890 lm |
| Lamp wattage | 30 W |
| Luminaire efficiency | 163,0 lm/W |
| Colour rendering index Ra | ≥ 80 |
| Power consumption | 0.73 mA |
| Energy consumption | 34 kWh/1.000 h |
| Energy efficiency class | D |
Download Center

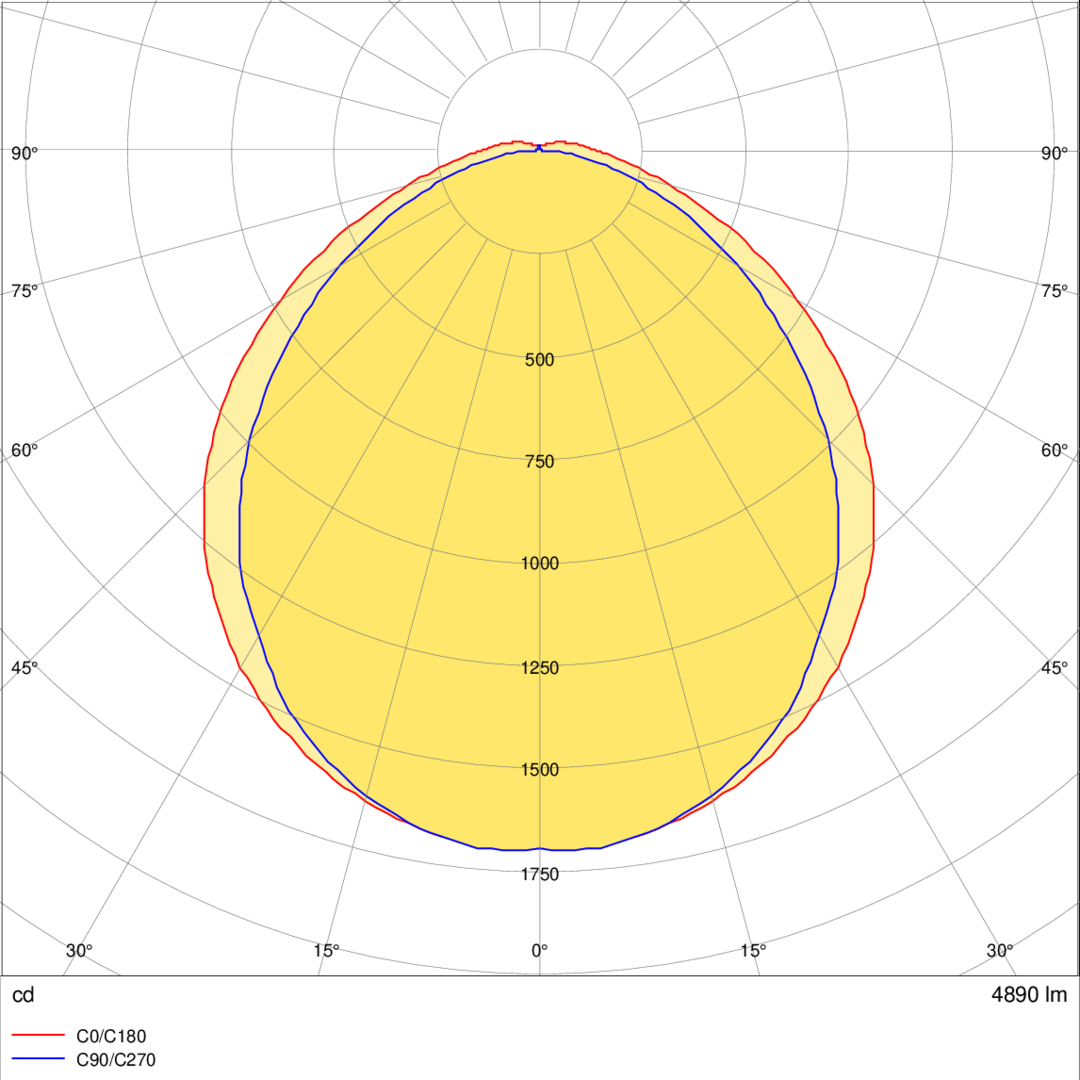

Light distribution curve
Approvals:
Attributes:
