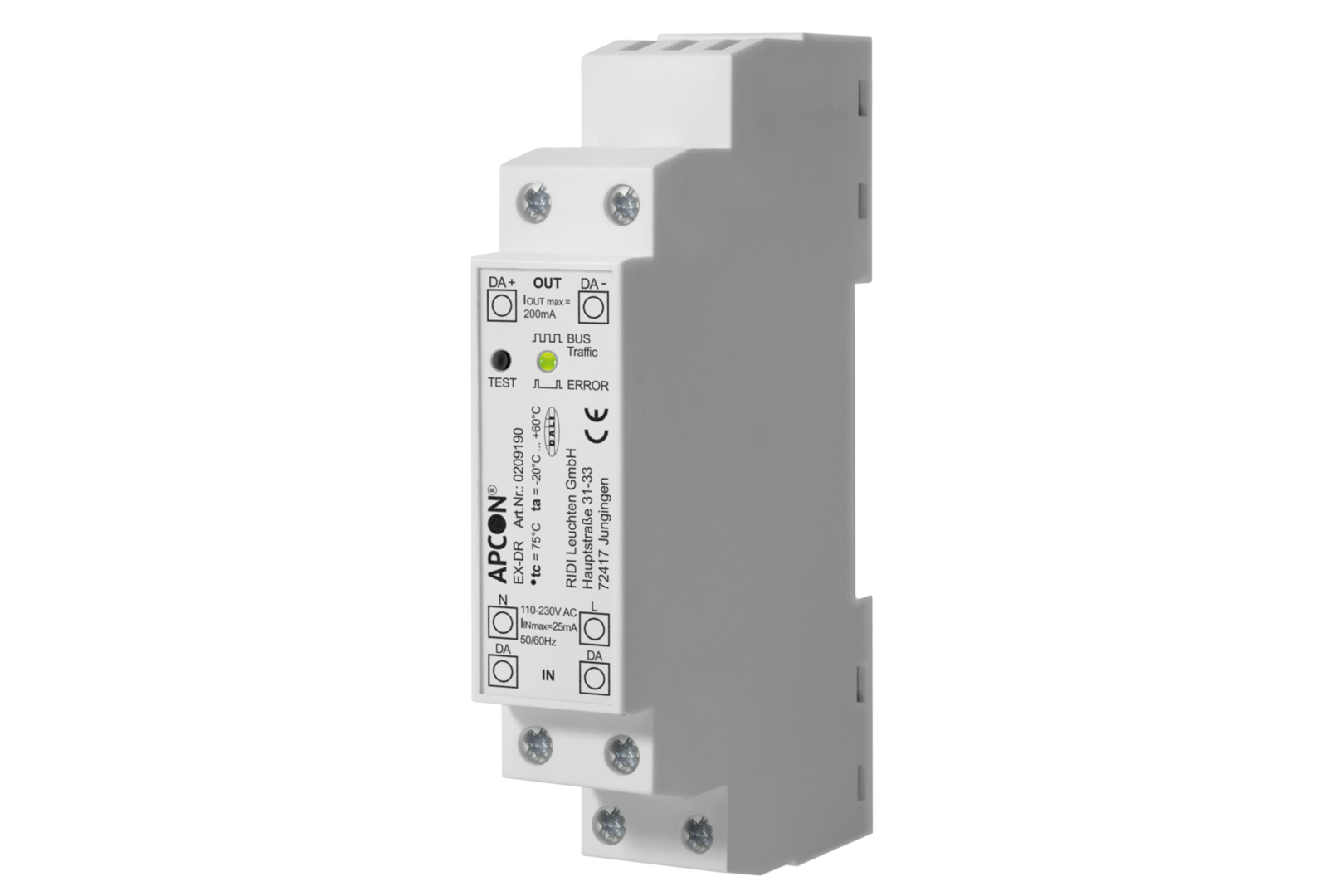

APCON EX-DR / 0209190
Product Description
DALI module for area grouping of luminaires, range extension beyond 300 m and for extending the address range up to 4096 luminaires in a DALI circuit. Plastic, light grey, similar to RAL 7035. One sub-unit wide, suitable for DIN rail / top-hat rail mounting. Possibility of connecting a push-button for switching on and off and for dimming. Configuration via the "DALI Cockpit Mobile" app or via the "DALI Cockpit" PC software. Broadcast forwarding of the DALI commands received at the input to the output.
Order Information
| Item number | 0209190 |
| GTIN | 4029299536508 |
General
| Product category | System component |
Dimensions
| Dimension L | 98 mm |
| Dimension B | |
| Dimension H | 56 mm |
| Net weight | 0.059 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Top-hat rail |
| Connection type | Screw terminal |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | light grey, similar to RAL 7035 |
| Permissible ambient temperature | -20–60 °C |
| Housing material | Plastic |
Electrical version
| Type of control | DALI |
| Nominal voltage | 110–230 V, 50–60 Hz |
| Power consumption | 5.3 W |
| Output voltage | 12–20.5 V |
| Output current | 200 mA |
Download Center
